Elstein spare parts

Elstein spare parts

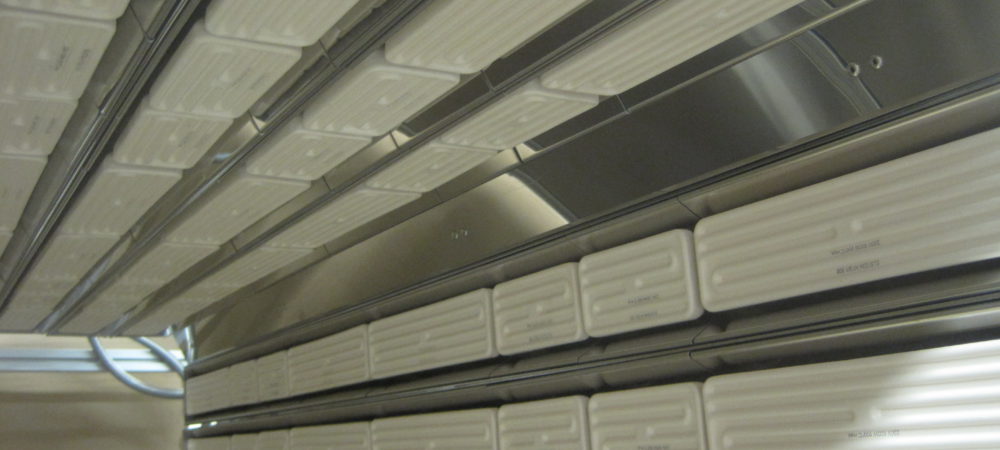

Elstein heating panel spare parts

In addition to producing the Elstein heating panels according to customer specification, you can also contact us for ordering Elstein heating panels spare parts such as all types of Elstein heating elements as well as the materials required for the connection of these heating elements.

Standard heating panels:

You can also order standard heating panels. You can choose from:

• Type EBF can be supplied with all elements that have a width of 60 mm. The length of the panel depends on the type and number of elements. The panel consists of an extruded and anodized aluminum profile of 100 mm wide and 77 mm high.

• Type EBI is equal to type EBF. However, the panel itself is made of stainless steel and is 100 mm wide and 87 mm high.

We can also perform maintenance and overhaul work on your existing heating panels.

The most commonly used heating elements are:
• HTS and T-HTS, dimensions 122x122mm, 250W, 400W, 600W, 800W and 1000W / 230V
• HTS / 1 and T-HTS / 1, dimensions 245x60mm, 250W, 400W, 600W, 800W and 1000W / 230V
• HTS / 2 and T-HTS / 2, dimensions 122x60mm, 125W, 200W, 300W, 400W and 500W / 230V
• HTS / 4 and T-HTS / 4, dimensions 60x60mm, 60W, 100W, 150W, 200W and 250W / 230V

• SHTS and T-SHTS, dimensions 122x122mm, 1200W / 230V
• SHTS / 1 and T-SHTS / 1, dimensions 245x60mm, 1200W / 230V
• SHTS / 2 and T-SHTS / 2, dimensions 122x60mm, 600W / 230V
• SHTS / 4 and T-SHTS / 4, dimensions 60x60mm, 300W / 230V

• HSR and T-HSR, dimensions 122x122mm, 250W, 400W, 600W, 800W and 1000W / 230V
• HSR / 1 and T-HSR / 1, dimensions 245x60mm, 250W, 400W, 600W, 800W and 1000W / 230V
• HSR / 2 and T-HSR / 2, dimensions 122x60mm, 125W, 200W, 300W, 400W and 500W / 230V

• FRS and T-FRS, dimensions 245×62.5mm, 250W, 400W, 650W and 1000W / 230V
• FRS / 2 and T-FRS / 2, dimensions 162×62.5mm, 125W, 200W, 325W and 500W / 230V
• FRS / 4 and T-FRS / 4, dimensions 62.5×62.5mm, 60W, 100W, 200W and 250W / 230V

• type FSM and T-FSM in the same dimensions and capacities as type FSR

For all your requests you can reach us by phone, email or by filling in the request form below

×
