Drying and flowing of coatings

Coatings drying and flowing

Coatings drying and flowing

There are different types of coatings that can be applied for coloring, decorating or protecting the basic material. The coatings can also be applied to all kinds of materials. Many applied coatings can then be excellently dried with infrared, whether or not in combination with air. The air can be blown over the surface by means of air knives. More information about air knives can be found under printing industry. During the drying process volatile substances are released, usually water vapor which must be extracted in order to obtain an optimum drying result.

In addition to drying the coating, the infrared heater is also an excellent solution for pre-heating the coating material, so that the coating flows out better. For example, by first heating the material with infrared after applying a UV coating, the UV lacquer flows better. This makes it very equal distributed on the surface. The coating can then be cured with UV radiation panels.

The infrared panels transfer the heat by radiation to the processed material. That is why this method of drying is most suitable for flowing and drying coatings on flat surfaces. For drying on 2 sides, IR panels must therefore be installed on both sides. Drying complex 3D shapes can cause problems because the IR radiation cannot reach all parts. It is, however, possible to make the IR lamps in all kinds of shapes. There are, among other things, round curved versions available especially for round objects.

We would like to point out that we can carry out tests at our company location in Middenbeemster or at your location. On the basis of these tests, we are able to give you a good advice. We can then inform you about the best possible solution and the energy consumption you need for this.

Applications:

Below you can see some examples of applications that we have realized.

For coloring and protecting wood, among other things use for floorboards and furniture panels

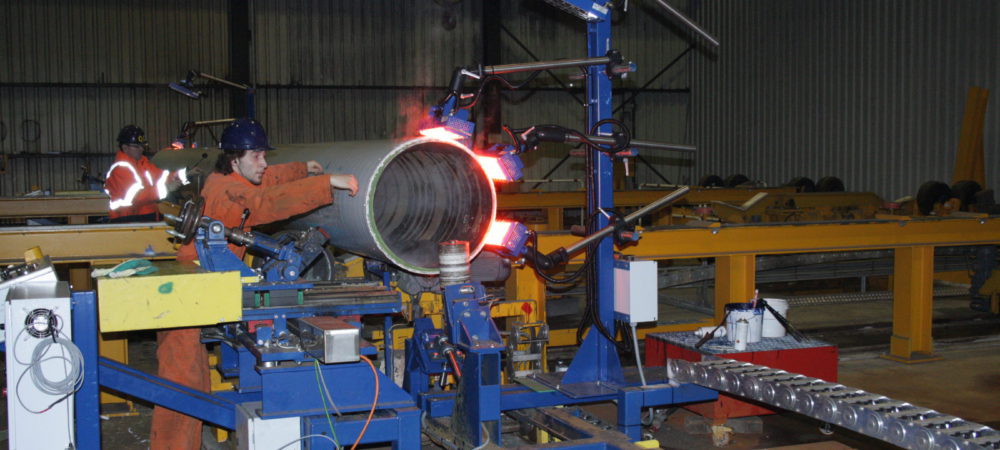

For bringing the plates to temperature for good adhesion

For coloring metal plates and applying a protective layer against corrosion.

For making the material anti-static by applying a silicone emulsion layer, from which the water must be removed.

For drying dispersion varnishes, you can find more information about this under Printing industry

×
